Drop Forged G80 Connector

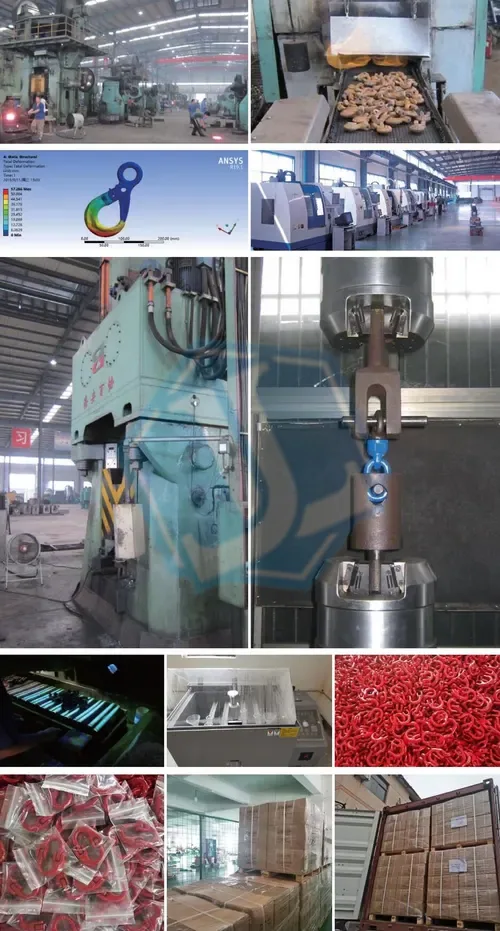

Manufactured and inspected under one roof in Shaoxing, Zhejiang — an 8,700 m² factory running an ISO 9001 quality system. Batch tested to the specification you agree, with full export documents.
- Item No.
- 170
- Material
- Grade 80 alloy steel
- Quality & standards
- Batch pull tested to EN 1677 / RR-C-271 on request
- Category
- Rigging hardware
- Customisation
- Size, grade, finish (self-colored / galvanized / stainless) and markings
- MOQ
- Negotiable — trial orders and mixed containers accepted
Or email sales@chinacargocontrol.com — mention the item number and we will reply within 2 working hours.
Product overview

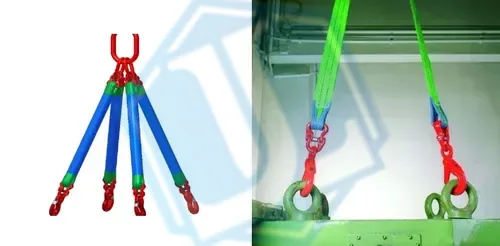

The Grade 80 Web Sling Connector is a vital component in modern rigging systems, especially when combining the strength of steel with the flexibility and protection of synthetic web slings.
Built to handle demanding loads while protecting your lifting gear, this connector helps ensure both safety and efficiency in every lift.
Whether you're lifting in a warehouse, shipyard, or on a construction site, this rugged connector is a smart and reliable choice for your rigging toolkit.
Which standard applies in your market
The same product is rated and marked differently in each market. In Europe and Australia a lifting sling is rated by its safety factor (7:1) and a lashing by its Lashing Capacity (LC); in North America the same product is marked with a Working Load Limit (WLL) on a 5:1 design factor. Tell us your destination market and the end use, and we build to the standard your buyer specifies — with the matching test certificate, marking and documentation.
| European Union / UK | EN 1677-1 to -4 — Components for slings — forged steel components, hooks and links, Grade 8 |
|---|---|
| United States | RR-C-271 (shackles) · ASTM — Shackles, hooks and rigging hardware |
| Australia / New Zealand | AS 2741 (shackles) · AS 3776 (chain sling components) · AS 2317.1 (collared eye bolts) — Lifting hardware and chain sling components |
Also supplied under these names: Grade 80 Web Sling Connector, Special Webbing Connector, Link Hammerlock Connector.
Reference for quotation: Item No. 170. Quote this and we come straight back with price, MOQ and lead time.
Specification & ordering
| Item No. | 170 |
|---|---|
| Material | Grade 80 alloy steel |
| Quality & standards | Batch pull tested to EN 1677 / RR-C-271 on request |
| Category | Rigging hardware |
| Customisation | Size, grade, finish (self-colored / galvanized / stainless) and markings |
| MOQ | Negotiable — trial orders and mixed containers accepted |
| Sample | Free sample for evaluation, freight collect |
| Lead time | 10–50 days depending on quantity (confirmed at order) |
| Port | Ningbo / Shanghai, China |
