HHP Flipper Delta Anchor
Manufactured and inspected under one roof in Shaoxing, Zhejiang — an 8,700 m² factory running an ISO 9001 quality system. Batch tested to the specification you agree, with full export documents.
- Item No.
- 220
- Material
- Ask us — 304 / 316 stainless steel or galvanized steel available
- Quality & standards
- Marine-grade materials · batch pull tested
- Category
- Marine Hardware
- Customisation
- Size, material grade (304 / 316) and finish (mirror polish or brushed)
- MOQ
- Negotiable — trial orders and mixed containers accepted
Or email sales@chinacargocontrol.com — mention the item number and we will reply within 2 working hours.
Product overview

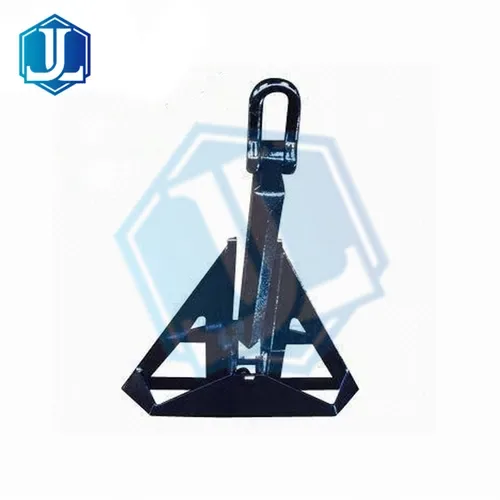

The High Holding Power (HHP) Welded Fin-type Delta Anchor, also referred to as the Flipper Delta Anchor, is a robust marine anchoring solution designed for demanding offshore and mooring applications.
Leveraging a welded, triangular (delta) design, this anchor offers superior holding capabilities and reliability.
Key Features Welded Delta Structure The anchor head is constructed from high-strength steel plates through welding, while the shank (anchor rod) is usually cast.
This hybrid design enhances the anchor's strength and durability.
High Holding Power & Efficient Penetration Engineered for exceptional holding efficiency, the open delta structure enables smooth and rapid seabed penetration with minimized drag.
It delivers high holding force relative to its weight.
Wide Weight Range & Certifications Available in a broad weight spectrum, typically from 300 kg up to 25,000 kg (and even
Which standard applies in your market
The same product is rated and marked differently in each market. In Europe and Australia a lifting sling is rated by its safety factor (7:1) and a lashing by its Lashing Capacity (LC); in North America the same product is marked with a Working Load Limit (WLL) on a 5:1 design factor. Tell us your destination market and the end use, and we build to the standard your buyer specifies — with the matching test certificate, marking and documentation.
| European Union / UK | EN 1677-1 to -4 — Components for slings — forged steel components, hooks and links, Grade 8 |
|---|---|
| United States | RR-C-271 (shackles) · ASTM — Marine and mooring rigging hardware |
| Australia / New Zealand | AS 2741 (shackles) — Shackles for lifting applications |
Also supplied under these names: High Holding Power Anchor, Welded Delta Anchor, Fin-type Delta Anchor.
Reference for quotation: Item No. 220. Quote this and we come straight back with price, MOQ and lead time.
Specification & ordering
| Item No. | 220 |
|---|---|
| Material | Ask us — 304 / 316 stainless steel or galvanized steel available |
| Quality & standards | Marine-grade materials · batch pull tested |
| Category | Marine Hardware |
| Customisation | Size, material grade (304 / 316) and finish (mirror polish or brushed) |
| MOQ | Negotiable — trial orders and mixed containers accepted |
| Sample | Free sample for evaluation, freight collect |
| Lead time | 10–50 days depending on quantity (confirmed at order) |
| Port | Ningbo / Shanghai, China |
