304 / 316 Stainless Steel Shackle — Marine Grade Shackle

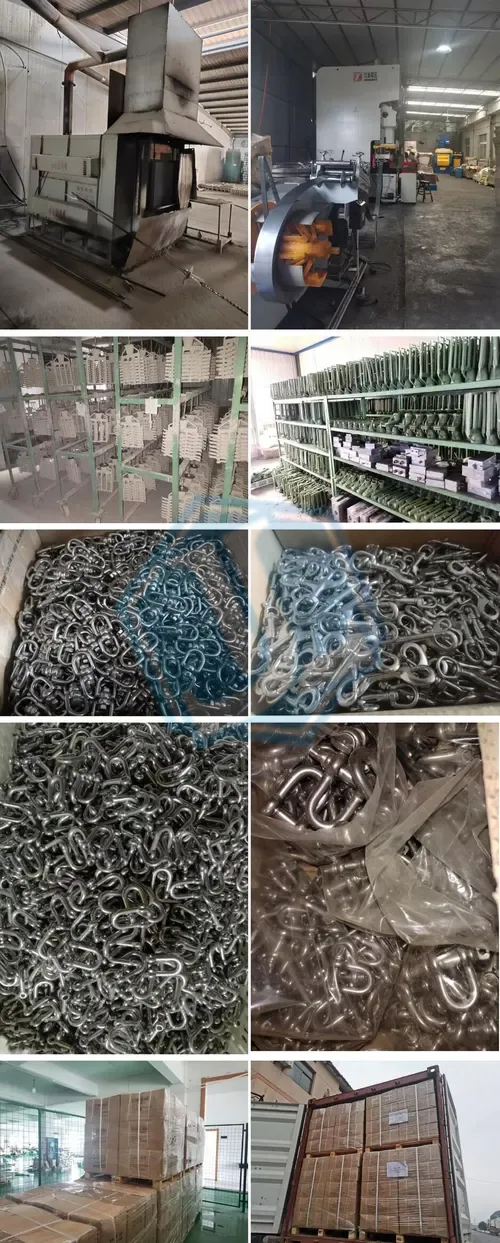

Manufactured and inspected under one roof in Shaoxing, Zhejiang — an 8,700 m² factory running an ISO 9001 quality system. Batch tested to the specification you agree, with full export documents.
- Item No.
- 261
- Material
- AISI 304 / 316 stainless steel
- Quality & standards
- Batch pull tested to EN 1677 / RR-C-271 on request
- Category
- Rigging hardware
- Customisation
- Size, grade, finish (self-colored / galvanized / stainless) and markings
- MOQ
- Negotiable — trial orders and mixed containers accepted
Or email sales@chinacargocontrol.com — mention the item number and we will reply within 2 working hours.
Product overview

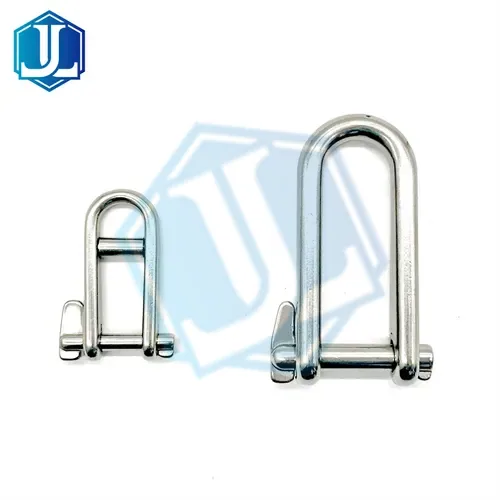

The Stainless Steel Key Safety Pin Halyard D (Dee) Shackle with Bar is a specialized and secure connector designed for precision, safety, and durability.
With its safety locking pin and retaining bar, it prevents accidental disconnection and ensures ropes or halyards remain in place.
Made from marine-grade stainless steel, it offers excellent corrosion resistance, making it the perfect choice for sailing, rigging, construction, and industrial use.
Which standard applies in your market
The same product is rated and marked differently in each market. In Europe and Australia a lifting sling is rated by its safety factor (7:1) and a lashing by its Lashing Capacity (LC); in North America the same product is marked with a Working Load Limit (WLL) on a 5:1 design factor. Tell us your destination market and the end use, and we build to the standard your buyer specifies — with the matching test certificate, marking and documentation.
| European Union / UK | EN 1677-1 to -4 — Components for slings — forged steel components, hooks and links, Grade 8 |
|---|---|
| United States | RR-C-271 (shackles) · ASTM — Shackles, hooks and rigging hardware |
| Australia / New Zealand | AS 2741 (shackles) · AS 3776 (chain sling components) · AS 2317.1 (collared eye bolts) — Lifting hardware and chain sling components |
Also supplied under these names: Marine Grade Shackle, Key Safety Pin Halyard Shackle, D Dee Shackle.
Reference for quotation: Item No. 261. Quote this and we come straight back with price, MOQ and lead time.
Specification & ordering
| Item No. | 261 |
|---|---|
| Material | AISI 304 / 316 stainless steel |
| Quality & standards | Batch pull tested to EN 1677 / RR-C-271 on request |
| Category | Rigging hardware |
| Customisation | Size, grade, finish (self-colored / galvanized / stainless) and markings |
| MOQ | Negotiable — trial orders and mixed containers accepted |
| Sample | Free sample for evaluation, freight collect |
| Lead time | 10–50 days depending on quantity (confirmed at order) |
| Port | Ningbo / Shanghai, China |
