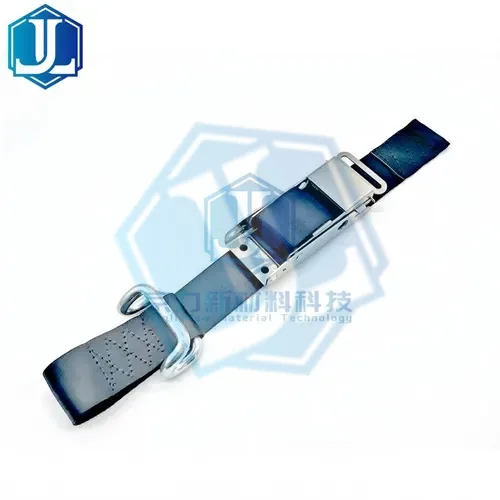

45mm Stainless Steel Curtainside External Curtain Strap with Rave Hook
Manufactured in our own 8,700 m² facility in Shaoxing, Zhejiang. In-house weaving, dyeing and sewing — so specification, lead time and price stay under our control.
- Item No.
- 86
- Size
- 45 mm
- End fittings
- rave hook
- Material
- High-tenacity polyester webbing
- Hardware
- AISI 304 / 316 stainless steel
- Quality & standards
- EN 12195-2 · TÜV GS (cert. S 50594629)
Or email sales@chinacargocontrol.com — mention the item number and we will reply within 2 working hours.
Product overview
A curtain-side load restraint strap in 45 mm, fitted with rave hook.
Part of a complete curtain-side restraint system: external straps hold the curtain, internal straps restrain the load behind it.
We build the full assembly — buckle, hook, webbing and stitching — in our own workshop, so the whole system matches.
Key features
- Webbing / body width: 45 mm
- End fittings: rave hook
- Material: High-tenacity polyester webbing
- Hardware: AISI 304 / 316 stainless steel
- Quality & standards: EN 12195-2 · TÜV GS (cert. S 50594629)
- Custom widths, lengths, colors, printed logos and packaging
- Free sample for evaluation — freight collect
Typical applications
Flatbed trailers, curtain-side trucks, containers, vans, car transporters and recovery vehicles.
Send us the item number, a drawing or a reference sample and we will come back with price, MOQ and current lead time within 2 working hours.
Which standard applies in your market
The same product is rated and marked differently in each market. In Europe and Australia a lifting sling is rated by its safety factor (7:1) and a lashing by its Lashing Capacity (LC); in North America the same product is marked with a Working Load Limit (WLL) on a 5:1 design factor. Tell us your destination market and the end use, and we build to the standard your buyer specifies — with the matching test certificate, marking and documentation.
| European Union / UK | EN 12195-2 (forces calculated to EN 12195-1) — Web lashing made from man-made fibers — rated as a Lashing Capacity (LC) |
|---|---|
| United States | WSTDA T-1 · FMCSA 49 CFR 393 — Synthetic web tie downs for road vehicles — rated as a Working Load Limit (WLL) |
| Canada | NSC Standard 10 — Cargo securement — aggregate WLL of the restraint system |
| Australia / New Zealand | AS/NZS 4380 — Webbing load restraint systems for heavy vehicles — rated as a Lashing Capacity (LC) |
| Brazil | ABNT NBR 15883 — Slings for tie down — calculation of lashing forces |
Reference for quotation: Item No. 86. Quote this and we come straight back with price, MOQ and lead time.
Safety note: lashing straps are for load restraint only — never use them for lifting. Do not overload, do not twist the webbing, protect it from sharp edges, and inspect before every use.
Specification & ordering
| Item No. | 86 |
|---|---|
| Size | 45 mm |
| End fittings | rave hook |
| Material | High-tenacity polyester webbing |
| Hardware | AISI 304 / 316 stainless steel |
| Quality & standards | EN 12195-2 · TÜV GS (cert. S 50594629) |
| Category | Ratchet Tie Down |
| Color | Any color, or to your sample |
| Customisation | Width, length, color, printed logo, fittings and packaging made to order |
| MOQ | Negotiable — trial orders and mixed containers accepted |
| Sample | Free sample for evaluation, freight collect |
| Lead time | 10–50 days depending on quantity (confirmed at order) |
| Port | Ningbo / Shanghai, China |
