8 Ton (8,000 kg) Flat lifting webbing sling
Manufactured in our own 8,700 m² facility in Shaoxing, Zhejiang. In-house weaving, dyeing and sewing — so specification, lead time and price stay under our control.
- Working capacity
- 8 t / 8,000 kg
- Material
- High-tenacity polyester webbing
- Safety Factor
- 7:1 to EN 1492-1 · 5:1 to ASME B30.9 · other design factors to order
- Ply
- 1, 2, 3 or 4 ply
- Quality & standards
- EN 1492-1 · TÜV GS (cert. S 50594633)
- Category
- Flat Webbing Sling
Or email sales@chinacargocontrol.com — mention the item number and we will reply within 2 working hours.
Product overview

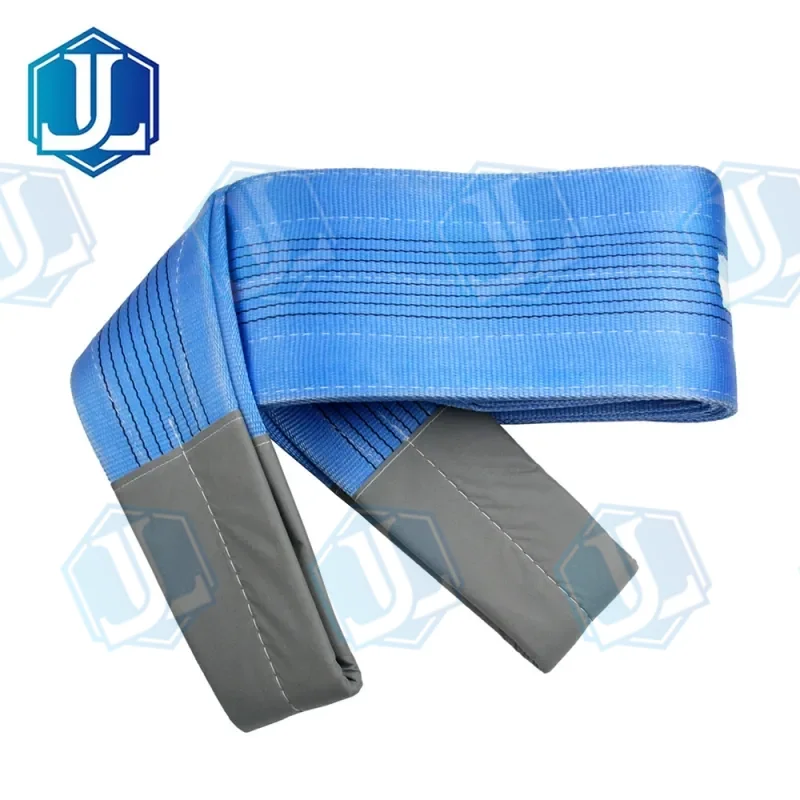

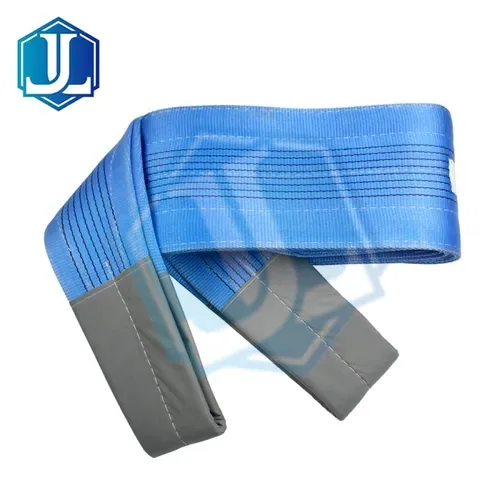

A flat webbing sling, rated 8 t / 8,000 kg.
Every sling carries a color-coded capacity label; multiply the plies for heavier lifts.
Made from 100% high-strength polyester yarn with a reinforced eye at each end, so it grips without marking or scratching the load.
Key features
- Capacity: 8 t / 8,000 kg
- Material: High-tenacity polyester webbing
- Quality & standards: EN 1492-1 · TÜV GS (cert. S 50594633)
- Custom widths, lengths, colors, printed logos and packaging
- Free sample for evaluation — freight collect
Typical applications
Port and workshop lifting, steel plate and pipe handling, precast concrete, wind-turbine components.
Send us the item number, a drawing or a reference sample and we will come back with price, MOQ and current lead time within 2 working hours.
Which standard applies in your market
The same product is rated and marked differently in each market. In Europe and Australia a lifting sling is rated by its safety factor (7:1) and a lashing by its Lashing Capacity (LC); in North America the same product is marked with a Working Load Limit (WLL) on a 5:1 design factor. Tell us your destination market and the end use, and we build to the standard your buyer specifies — with the matching test certificate, marking and documentation.
| European Union / UK | EN 1492-1 — Flat woven webbing slings of man-made fibers — safety factor 7:1 |
|---|---|
| United States | ASME B30.9 — Synthetic web slings — design factor 5:1 |
| Australia / New Zealand | AS 1353.1 (product) · AS 1353.2 (care and use) — Flat synthetic-webbing slings — AS/NZS design factor 7:1 |
| Brazil | ABNT NBR 15637-1 — Flat lifting straps of high-tenacity synthetic yarn — safety factor 7:1 |
What 8 t actually holds once it is rigged
The label reads 8 t / 17,600 lb, and that number assumes one leg pulling straight up under EN 1492-1. Every other hitch changes it, so this is the table to check before you order rather than after.
| Hitch mode | Factor | Capacity | Capacity (lb) |
|---|---|---|---|
| One leg, straight vertical lift | × 1 | 8 t | 17,600 lb |
| Choker hitch | × 0.8 | 6.4 t | 14,100 lb |
| Basket hitch, both legs vertical | × 2 | 16 t | 35,300 lb |
| Basket hitch, 45° between the legs | × 1.8 | 14.4 t | 31,700 lb |
| Basket hitch, 90° between the legs | × 1.4 | 11.2 t | 24,700 lb |
| Basket hitch, 120° between the legs | × 1 | 8 t | 17,600 lb |
The cover is blue, the EN 1492 colour code for 8 t. Our standard build at this capacity is 85 mm webbing; other widths are sewn to order. In use this size covers heavy plant, large castings, press and shipyard work. It is the heaviest size in this range, which runs from 1 t to 8 t. A choker costs 20% of the rating, so this sling in a choker holds 6.4 t — if you rig in choke most of the time, order the next capacity up.
Specification & ordering
| Webbing width | 85 mm standard build (other widths sewn to order) |
|---|---|
| Colour code | Blue to EN 1492 (8 t) |
| Working capacity | 8 t / 8,000 kg |
| Material | High-tenacity polyester webbing |
| Safety Factor | 7:1 to EN 1492-1 · 5:1 to ASME B30.9 · other design factors to order |
| Ply | 1, 2, 3 or 4 ply |
| Quality & standards | EN 1492-1 · TÜV GS (cert. S 50594633) |
| Category | Flat Webbing Sling |
| Color | Any color, or to your sample |
| Customisation | Width, length, color, printed logo, fittings and packaging made to order |
| MOQ | Negotiable — trial orders and mixed containers accepted |
| Sample | Free sample for evaluation, freight collect |
| Lead time | 10–50 days depending on quantity (confirmed at order) |
| Port | Ningbo / Shanghai, China |
