Open Body Turnbuckle (Item No. 117) — Rigging hardware manufactured by Zhejiang Jingli, China
Rigging hardware · Item No. 117

Open Body Turnbuckle

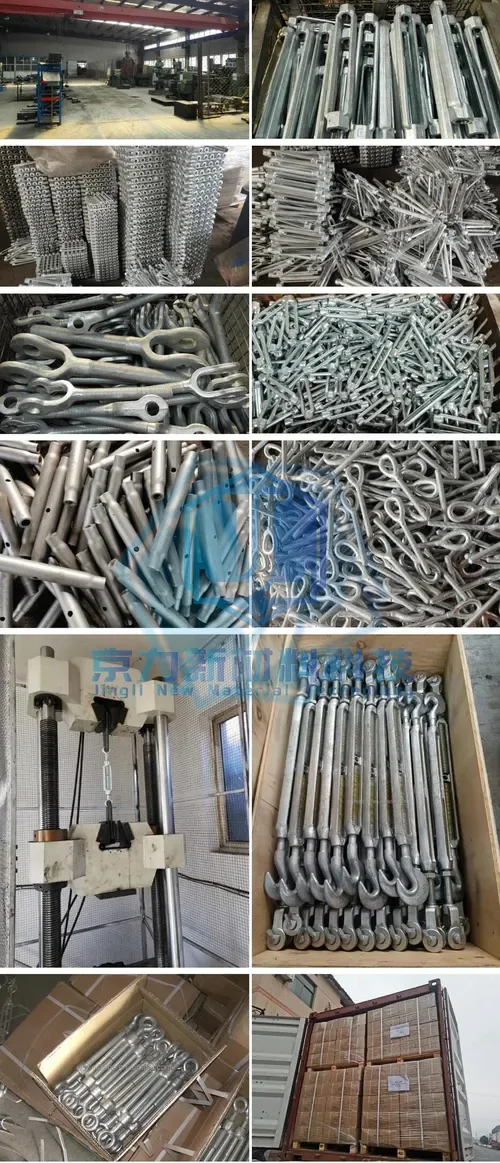

Manufactured and inspected under one roof in Shaoxing, Zhejiang — an 8,700 m² factory running an ISO 9001 quality system. Batch tested to the specification you agree, with full export documents.

✓ Pull tested per batch✓ OEM / ODM✓ Free sample✓ Export documents supplied
Item No.
117
End fittings
hook
Material
Galvanized steel
Quality & standards
Batch pull tested to EN 1677 / RR-C-271 on request
Category
Rigging hardware
Customisation
Size, grade, finish (self-colored / galvanized / stainless) and markings
Request a Quotation Ask on WhatsApp

Or email sales@chinacargocontrol.com — mention the item number and we will reply within 2 working hours.

Product overview

An Open Body Turnbuckle is a type of tensioning device designed to adjust the length and tension of ropes, cables, or rods.

Unlike the closed or solid body version, the open body turnbuckle features a frame with a visible, open structure—often shaped like a rectangular or oval metal sleeve—that allows easy inspection of the internal threads and bolts.

This design not only reduces weight but also facilitates better cleaning and maintenance, especially in environments where dirt, salt, or debris may accumulate.

Key Features: Open Frame Design: Easier to inspect and clean; suitable for environments requiring regular maintenance.

Adjustable Tension: Equipped with two threaded ends (typically one right-hand and one left-hand thread) that allow for precise tension control by rotating the body.

Multiple End Configurations: Available in combinations such as hook & eye, eye & eye, and jaw &

Which standard applies in your market

The same product is rated and marked differently in each market. In Europe and Australia a lifting sling is rated by its safety factor (7:1) and a lashing by its Lashing Capacity (LC); in North America the same product is marked with a Working Load Limit (WLL) on a 5:1 design factor. Tell us your destination market and the end use, and we build to the standard your buyer specifies — with the matching test certificate, marking and documentation.

European Union / UKEN 1677-1 to -4 — Components for slings — forged steel components, hooks and links, Grade 8
United StatesRR-C-271 (shackles) · ASTM — Shackles, hooks and rigging hardware
Australia / New ZealandAS 2741 (shackles) · AS 3776 (chain sling components) · AS 2317.1 (collared eye bolts) — Lifting hardware and chain sling components

Also supplied under these names: Steel Turnbuckle, Eye Type Open Body Turnbuckle.

Reference for quotation: Item No. 117. Quote this and we come straight back with price, MOQ and lead time.

Safety note: lashing straps are for load restraint only — never use them for lifting. Do not overload, do not twist the webbing, protect it from sharp edges, and inspect before every use.

Specification & ordering

Item No.117
End fittingshook
MaterialGalvanized steel
Quality & standardsBatch pull tested to EN 1677 / RR-C-271 on request
CategoryRigging hardware
CustomisationSize, grade, finish (self-colored / galvanized / stainless) and markings
MOQNegotiable — trial orders and mixed containers accepted
SampleFree sample for evaluation, freight collect
Lead time10–50 days depending on quantity (confirmed at order)
PortNingbo / Shanghai, China
Get a price

Request a quotation

We reply within 2 working hours (Mon–Sat). No MOQ for samples.

Get a quote in 2 working hoursFree sample · no MOQ · EN 1492-1 / EN 12195-2
