DIN5287 Swivel Snap Hook (Item No. 179) — Rigging hardware manufactured by Zhejiang Jingli, China
Rigging hardware · Item No. 179

DIN5287 Swivel Snap Hook

Manufactured and inspected under one roof in Shaoxing, Zhejiang — an 8,700 m² factory running an ISO 9001 quality system. Batch tested to the specification you agree, with full export documents.

✓ Pull tested per batch✓ OEM / ODM✓ Free sample✓ Export documents supplied
Item No.
179
End fittings
snap hook
Material
Carbon steel
Quality & standards
Batch pull tested to EN 1677 / RR-C-271 on request
Category
Rigging hardware
Customisation
Size, grade, finish (self-colored / galvanized / stainless) and markings
Request a Quotation Ask on WhatsApp

Or email sales@chinacargocontrol.com — mention the item number and we will reply within 2 working hours.

Product overview

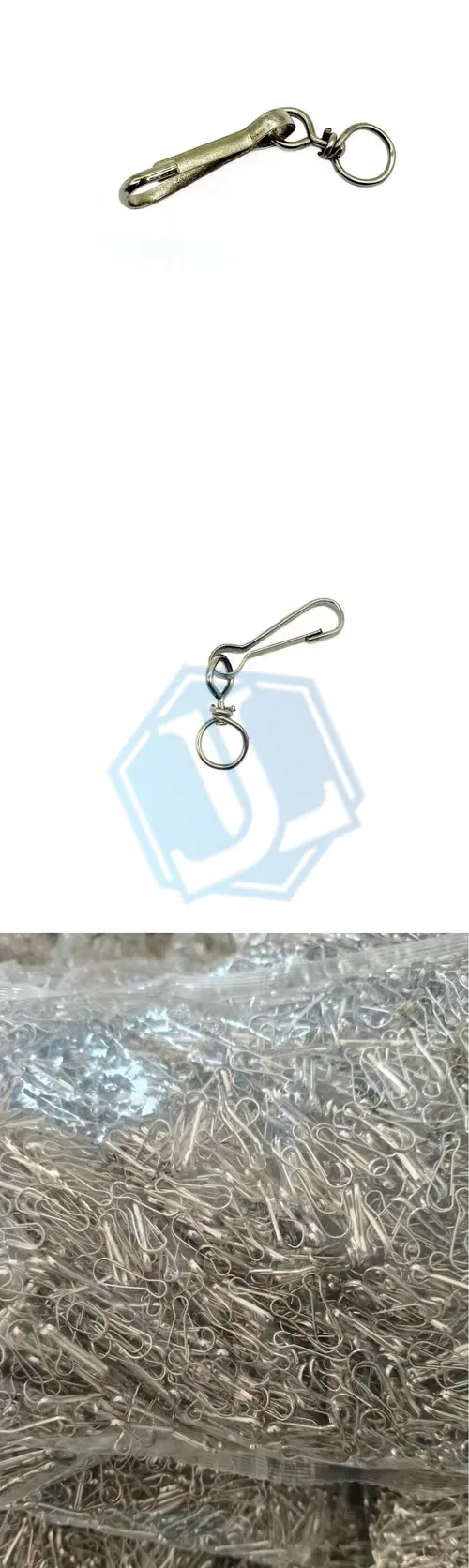

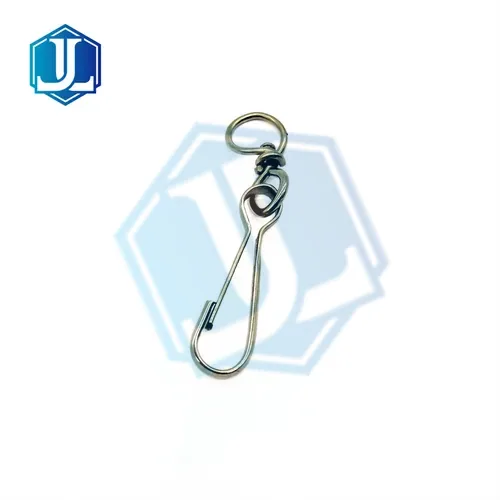

This hook meets the DIN5287 standard and features a classic Simplex design with a swivel eye and spring-loaded gate, crafted from nickel-plated mild steel for enhanced corrosion resistance and a polished finish.

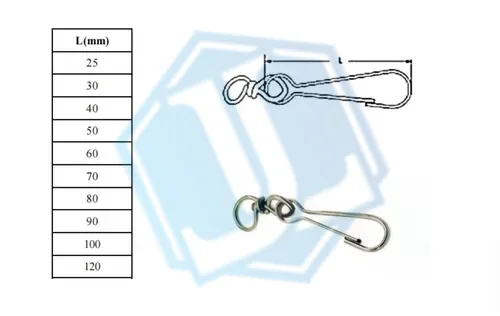

Available in lengths ranging from 25mm to 120mm, these hooks weigh between approximately 0.4kg and 9.3kg per 100 pieces.

The spring-operated hook allows for rapid and secure connections to ropes, lanyards, or straps without tools, while the swivel eye minimizes twisting under load.

Lightweight yet durable, it's ideal for applications in safety harnesses, pet leads, marine lines, keychains, or general utility rigging.

Which standard applies in your market

The same product is rated and marked differently in each market. In Europe and Australia a lifting sling is rated by its safety factor (7:1) and a lashing by its Lashing Capacity (LC); in North America the same product is marked with a Working Load Limit (WLL) on a 5:1 design factor. Tell us your destination market and the end use, and we build to the standard your buyer specifies — with the matching test certificate, marking and documentation.

European Union / UKEN 1677-1 to -4 — Components for slings — forged steel components, hooks and links, Grade 8
United StatesRR-C-271 (shackles) · ASTM — Shackles, hooks and rigging hardware
Australia / New ZealandAS 2741 (shackles) · AS 3776 (chain sling components) · AS 2317.1 (collared eye bolts) — Lifting hardware and chain sling components

Also supplied under these names: Simplex Swivel Spring Hook, Handbag Key Chain, Simplex Spring Snap Hook.

Reference for quotation: Item No. 179. Quote this and we come straight back with price, MOQ and lead time.

Safety note: lashing straps are for load restraint only — never use them for lifting. Do not overload, do not twist the webbing, protect it from sharp edges, and inspect before every use.

Specification & ordering

Item No.179
End fittingssnap hook
MaterialCarbon steel
Quality & standardsBatch pull tested to EN 1677 / RR-C-271 on request
CategoryRigging hardware
CustomisationSize, grade, finish (self-colored / galvanized / stainless) and markings
MOQNegotiable — trial orders and mixed containers accepted
SampleFree sample for evaluation, freight collect
Lead time10–50 days depending on quantity (confirmed at order)
PortNingbo / Shanghai, China
Get a price

Request a quotation

We reply within 2 working hours (Mon–Sat). No MOQ for samples.

Get a quote in 2 working hoursFree sample · no MOQ · EN 1492-1 / EN 12195-2
