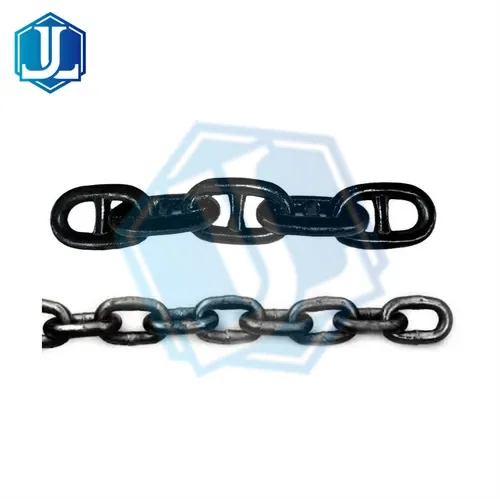

Marine R3 R4 R5 Stud Link Offshore Mooring Chain
Manufactured and inspected under one roof in Shaoxing, Zhejiang — an 8,700 m² factory running an ISO 9001 quality system. Batch tested to the specification you agree, with full export documents.
- Item No.
- 205
- Material
- Ask us — 304 / 316 stainless steel or galvanized steel available
- Quality & standards
- Marine-grade materials · batch pull tested
- Category
- Marine Hardware
- Customisation
- Size, material grade (304 / 316) and finish (mirror polish or brushed)
- MOQ
- Negotiable — trial orders and mixed containers accepted
Or email sales@chinacargocontrol.com — mention the item number and we will reply within 2 working hours.
Product overview
The Marine R3, R4, and R5 grades of mooring chains are critical for offshore operations, offering specialized strength and durability for anchoring oil platforms, FPSOs, semi-submersibles, buoys, and other floating marine structures.
R3 and R3S grades are typically applied in marine continental shelf facilities.
R4 elevates strength and is commonly used in deep-sea environments.
R5, the highest strength grade, delivers optimal performance for the most demanding offshore applications.
Both stud link and studless link configurations are available, allowing customization based on flexibility needs and structural preferences.
Which standard applies in your market
The same product is rated and marked differently in each market. In Europe and Australia a lifting sling is rated by its safety factor (7:1) and a lashing by its Lashing Capacity (LC); in North America the same product is marked with a Working Load Limit (WLL) on a 5:1 design factor. Tell us your destination market and the end use, and we build to the standard your buyer specifies — with the matching test certificate, marking and documentation.
| European Union / UK | EN 1677-1 to -4 — Components for slings — forged steel components, hooks and links, Grade 8 |
|---|---|
| United States | RR-C-271 (shackles) · ASTM — Marine and mooring rigging hardware |
| Australia / New Zealand | AS 2741 (shackles) — Shackles for lifting applications |
Reference for quotation: Item No. 205. Quote this and we come straight back with price, MOQ and lead time.
Specification & ordering
| Item No. | 205 |
|---|---|
| Material | Ask us — 304 / 316 stainless steel or galvanized steel available |
| Quality & standards | Marine-grade materials · batch pull tested |
| Category | Marine Hardware |
| Customisation | Size, material grade (304 / 316) and finish (mirror polish or brushed) |
| MOQ | Negotiable — trial orders and mixed containers accepted |
| Sample | Free sample for evaluation, freight collect |
| Lead time | 10–50 days depending on quantity (confirmed at order) |
| Port | Ningbo / Shanghai, China |
